Troldtekt® Plus

Troldtekt Plus
Troldtekt Plus-mineral wool

The Troldtekt series’ two-layer acoustic panel, Troldtekt Plus, consists of a classic Troldtekt panel with a backing layer of sealed mineral wool.

The backing layer is cut to size and set back from the edges of the panel so that it fits between profiles or wood battens. Troldtekt Plus enables the acoustic ceiling and backing layer to be installed in one and the same workflow, saving construction time. Troldtekt Plus acoustic panels are ideal for the refurbishment of existing ceilings and for suspended and floating accoustic clouds.

The Troldtekt Plus solution saves space and, with dimensions down to 47 mm thick, you can achieve almost the same sound absorption properties as with a suspended Troldtekt ceiling and a separate layer of mineral wool.

Troldtekt Plus

With Troldtekt Plus, you can achieve almost the same sound absorption values as with a Classic suspended Troldtekt ceiling with mineral wool behind but with a lower fitting height.

Troldtekt Plus is available with one 18 mm or 40 mm layer of mineral wool on the back:

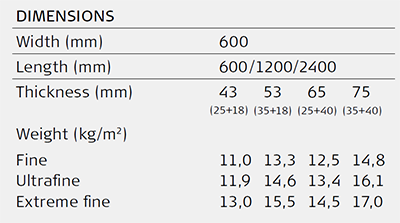

Troldtekt Plus Dimensions

Download the technical data sheet for Troldtekt Plus-mineral wool

The Troldtekt product generator provides a good overview of all available Troldtekt combinations. Select the panel type "Troldtekt" and click your way through the options to specify your product. After only a few clicks, you get the opportunity to download a dynamic specification, AutoCad drawings and an installation instruction for the specific product.

Easy-to-install new acoustic ceiling

Problems with noise and poor acoustics can be solved with a new acoustic ceiling. However, most people are daunted by the thought of having to remove the existing ceiling – a comprehensive process which causes inconvenience and generates dust. But this can be avoided.

You install Troldtekt Plus directly on wooden battens fitted to the existing ceiling and this saves you the trouble of removing the old ceiling. Drop sheets and a rolling scaffold are all that is required and the refurbishment can be completed in just a few days.

Removable ceilings

Troldtekt Plus is also the ideal solution for removable ceilings where workmen may require later access to installations above the ceiling. In profile systems such as Troldtekt T35 for concealed or exposed fitting, you just tilt up the acoustic panel to inspect and maintain installations above the ceiling.

The back of the mineral wool is covered with non-woven material and glued to the back of the Troldtekt panels, so workmen completely avoid contact with mineral wool fibres.

Floating acoustic clouds

Floating acoustic clouds using Troldtekt or Troldtekt Plus are an ideal solution if it is not possible to fit Troldtekt acoustic panels to the entire ceiling surface. Simply install Troldtekt or Troldtekt Plus panels using the C60 profile system and terminate the clouds with Troldtekt aluminium edge profiles. This creates an easy and elegant acoustics solution for defined areas.

Floating acoustic clouds with Troldtekt acoustic panels improve the acoustics extactly where it is needed
The Troldtekt product generator provides a quick overview of all available acoustic panels from Troldtekt.

Product generator

The Troldtekt product generator provides a quick overview of all available Troldtekt products. By simply clicking your way through the options – colour, structure, installation details etc. - you specify your desired product. You are also provided with autocad drawings and an installation instruction for the specific product, ready to download.



Troldtekt properties

Troldtekt properties

Troldtekt properties

Troldtekt properties

Troldtekt properties

Troldtekt properties

Troldtekt Plus technical data sheet

Declaration of performance

  • Troldtekt DoP2

    No. 02 Troldtekt Plus

Troldtekt® Plus

  • Installation instructions for Troldtekt® Plus K0, K5, K11 och K0-U, installed with screws

  • Installation instructions for Troldtekt® Plus, installed with concealed KN brackets

  • Installation instructions for Troldtekt® Plus K5-F and K5-FU, installed with screws

FAQs about sound-absorbing acoustic panels from Troldtekt.

FAQ

How many screws should I use per Troldtekt panel? Can I install Troldtekt panels outdoors and in wet rooms? These are some of the questions, that our technical department answers every day.
